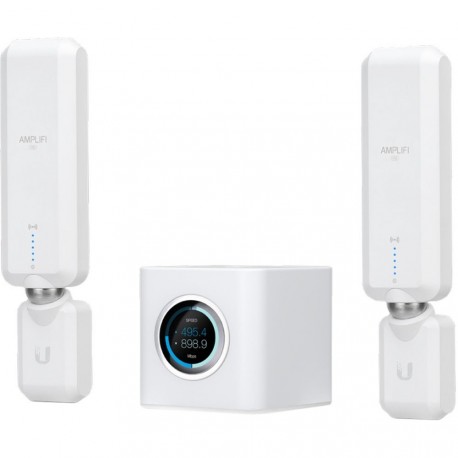

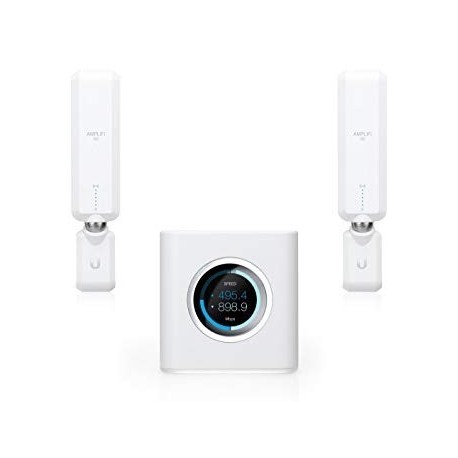

Usmerjevalnik (router) Ubiquiti HD Mesh AFI-HD

Sistem AmpliFi ™ HD (High Density) vključuje osnovno postajo usmerjevalnika in dve brezžični super mesh točki za največjo pokritost Wi-Fi v vašem domu.
Komplet HD zagotavlja največjo brezžično zmogljivost v inovativni in elegantni obliki.
Usmerjevalnik vključuje pametni LCD zaslon, mesh točke pa prikazujejo delovanje brezžičnega signala.
Mobilna aplikacija je na voljo za platformi iOS in Android ™ za takojšnjo namestitev in enostavno upravljanje.SPECIFIKACIJE
System SpecificationsMax. TX Power26 dBmRadios
6MIMO Chains
18Speed
5.25 GbpsSupported Data Rates802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11b1, 2, 5.5, 11 Mbps802.11g6, 9, 12, 18, 24, 36, 48, 54 MbpsMESH ROUTER
AFi-R-EUDimensions99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92")
Weight410 g (14.46 oz)Max. TX Power26 dBm
Radios2
MIMO Chains
6
Speed1750 Mbps
Networking InterfaceWi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Max. Power Consumption11W
ESD/EMP Protection± 24kV Air/Contact
ButtonsReset
Antennas
(1) Dual-Band Antenna, Tri-PolarityDisplay40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full ColorWi-Fi Standards
802.11acPower SaveSupportedWireless SecurityWPA2-PSK AES/TKIPOperating Temperature14 to 131° F (-10 to 55° C)Operating
Humidity5 to 95% NoncondensingCertificationsFCC / CE / ICSupported Data Rates802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11b1, 2, 5.5, 11 Mbps802.11g6, 9, 12, 18, 24, 36, 48, 54 MbpsMESHPOINT
AFi-P-HD
Dimensions
243.83 x 54 x 57.75 mm (9.60 x 2.13 x 2.27")Weight
0.224 kg (7.90 oz)Max. TX Power
26 dBmRadios
2MIMO Chains
6Speed
1750 MbpsESD/EMP Protection
± 24kV Air/ContactWi-Fi Standards
802.11acWireless Security
WPA2-PSK AES/TKIPButtons
ResetAntennas
(1) Dual-Band Antenna, Tri-PolarityPower Save
SupportedOperating Temperature
-10 to 55° C (14 to 131° F)Operating Humidity
5 to 95% NoncondensingCertifications
FCC, CE, ICSupported Data Rates (Mbps)802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11b
1, 2, 5.5, 11 Mbps802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
