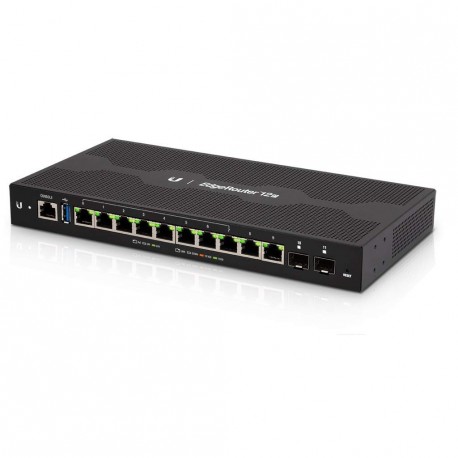

Usmerjevalnik (router) Ubiquiti EdgeRouter12P, ER-12P

Usmerjevalnik z vgrajenim stikalom Layer 2, 10x gigabitna vrata RJ45 in 2x SFP vrata, vsaka opremljena z 24-voltnim dvo-parnim PoE izhodom.
EdgeRouter 12P je visoko zmogljiv gigabitni usmerjevalnik z izhodom 24V 2-Pair PoE na vsaka vrata.
Z večjo zmogljivostjo v primerjavi s prejšnjo generacijo usmerjevalnikov EdgeRouter 12P zagotavlja do 3,4 milijona pps za 64-bajtne pakete.

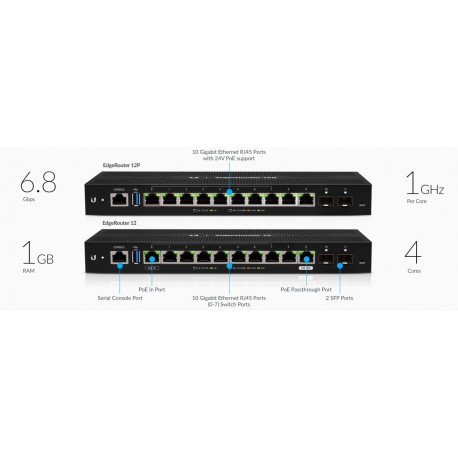

Deset gigabitnih ethernetnih vrat ponuja bakreno povezljivost, dve SFP vrati pa optična.
EdgeRouter 12P podpira preklapljanje Layer-2 in prilagodljivo konfiguracijo z uporabo EdgeOS ali UISP.SPECIFIKACIJE:
EdgeRouter 12PDimensions
268.1 x 136.5 x 31.1 mm(10.55 x 5.37 x 1.22")Weight
700 g(1.54 lb)Max. Power Consumption
20W (Excludes PoE Output)Power Method
External AC/DC Power Adapter, 12W (24VDC, 2.5A) (Included)Power Supply
External AC/DC AdapterSupported Voltage Range
9 - 30VDCButton
ResetLEDsSystem
PowerData Ports
PoE, Speed/Link/ActivitySFP Data Port
Link/ActivityProcessor
4-Core 1 GHz MIPS64System Memory
1 GB DDR3 RAMOn-Board Flash Storage
4 GB eMMC, 8 MB SPI NORESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kVInterfacesManagement
(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)Networking
(10) 10/100/1000 RJ45 Ports, (2) 1 Gbps SFP PortsOperating Temperature
-10 to 40° C (14 to 104° F)Operating Humidity
10 - 90% NoncondensingCertifications
CE, FCC, ICPoE with 24VDC Power AdapterPoE Interfaces
(10) 24V Passive PoE Ports, 2-Pair (Pins 4, 5+; 7, 8-)Passive PoE Max. Wattage per Port
17W (24V)Passive PoE Voltage Range
24V: 20 to 30V
