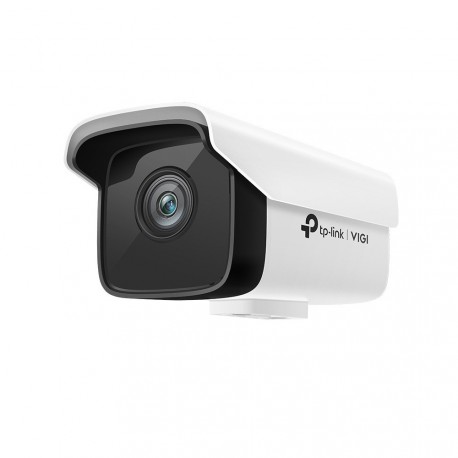

IP kamera TP-LINK VIGI 3MP Smart IR, VIGI C300HP-4

NETWORKSecurity
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API
ONVIF
Simultaneous Live View
4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams
GENERALPackage Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Bracket
Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Operating Temperature
-30–60 °C
Certifications
CE, FCC, RCM, BSMI, VCCI, IP67, RoHS
Dimensions( H X W X D )
164.9 x; 87.4 x; 83.4 mm
Material
Plastic
Weight
283.5g
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
CAMERAImage Sensor
1/2.8” Progressive Scan CMOS
Lens
4 mm / 6 mm
Aperture
4 mm: F2.4
6 mm: F2.0
Lens Mount
M12
Viewing Angle
(4 mm) horizontal FOV: 82.5°, vertical FOV: 44.9°, diagonal FOV: 99.3°
(6 mm) horizontal FOV: 51.9°, vertical FOV: 28.7°, diagonal FOV: 60°
Day/Night Mechanism
IR Cut Filter
IR Working Distance
30m
Minimum Illumination
Color: 0.1 Lux@F2.0; 0 Lux with IR
Weatherproof Rating
IP67
Digital Noise Reduction
3D DNR
WDR
DWDR
VIDEO/IMAGEVideo Compression
Main stream: H.265/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Video Streaming
Main Stream
Sub-Stream
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement
BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate
64 Kbps to 6 Mbps
SMART FEATURE-SETSmart Event
Area Intrusion Detection, Line-Crossing Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
INTERFACESNetwork Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm
-
Button
-
Video Output
-
