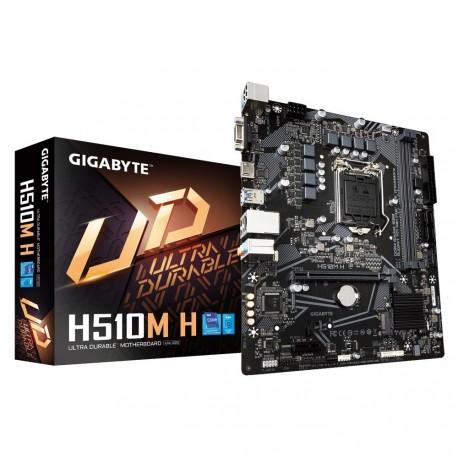

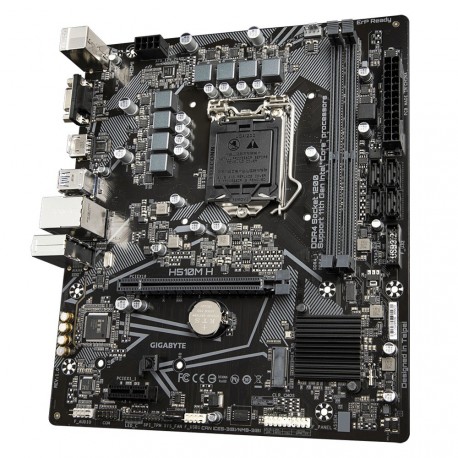

Matična plošča GIGABYTE H510M H, DDR4, LGA1200, mATX

PODNOŽJE: INTEL LGA 1200
ZA PROCESORJE: 11/10Gen
Intel Core i9/i7/i5/i3 / Intel Pentium / Intel Celeron
FORMAT:
Micro ATX Form Factor 24.4cm x 21cm
VEZNI ČIP:
Intel H510
POMNILNIK:
2 x DDR4 DIMM (do 3200/3000/2933/2666/2400/2133MHz) do skupno 64GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA:
DA - preko CPU
RAID:
NE
RAZšIRITVENE REŽE:
1 x PCI Express x16
1 x PCI Express x1
MREŽNA KARTICA:
Realtek LAN chip (10/100/1000 Mbit)
ZVOČNA KARTICA:
Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control UtilitySpletna stran proizvajalca:
https://www.gigabyte.com/Motherboard/H510M-H-rev-10#kf
