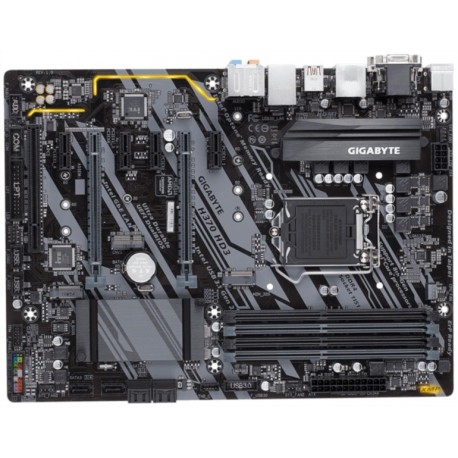

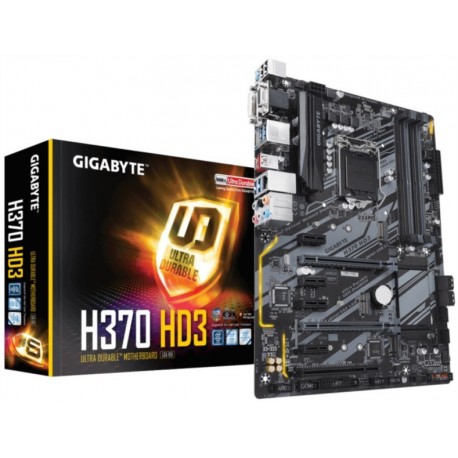

Matična plošča GIGABYTE H370 HD3, DDR4, LGA1151, ATX

PODNOŽJE: INTEL LGA 1151
ZA PROCESORJE: 8th Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 2 cm
VEZNI ČIP: Intel H370 Express
POMNILNIK:4 x DIMM DDR4 (do 2666MHz) do skupno 64GB kapacitete, dual channel podpora
GRAFIKA: DA / Intel® HD Graphics
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE: 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 1 x PCI 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
MREŽNA KARTICA: Intel Gigabit LAN Controller(s)
ZVOČNA KARTICA: Realtek® ALC887 8-Channel High Definition Audio CODEC
NOTRANJI PRIKLJUČKI: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x RGB LED strip header, 6 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Thunderbolt™ add-in card connector, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x parallel port header, 1 x serial port header, 1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 1 x USB Type-C™ port, with USB 3.1 Gen 1 support, 1 x USB 3.1 Gen 2 Type-A port (red), 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks
