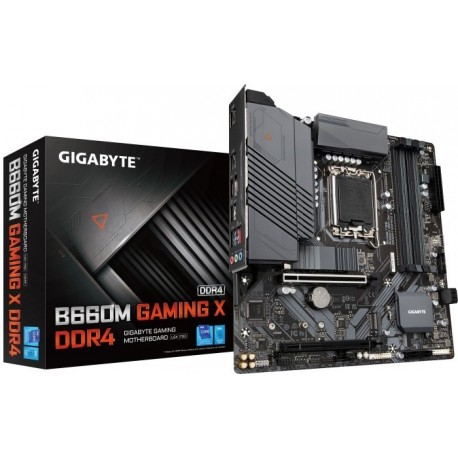

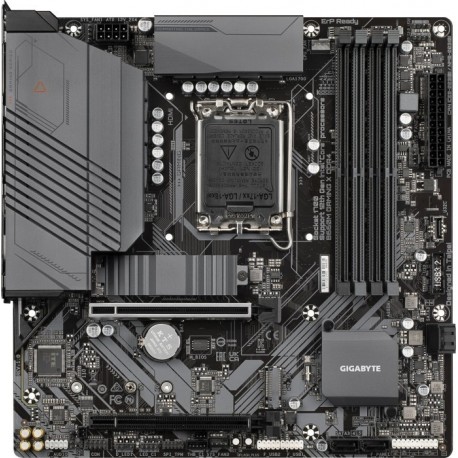

Matična plošča GIGABYTE B660M GAMING X DDR4, LGA1700, mATX

PODNOŽJE:
INTEL LGA 1700
ZA PROCESORJE:
12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: INTEL B660
POMNILNIK:
4 x DDR4 DIMM ECC/non-ECC (4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz) do skupno 128GB kapacitete, dual channel in
XMP
podpora
GRAFIKA: DA - preko CPU
RAID:
RAID 0, RAID 1, RAID 5, and RAID 10
RAZšIRITVENE REŽE:
1 x PCI Express
4.0/3.0
x16
1 x PCI Express
3.0
x4
MREŽNA KARTICA: Realtek
2.5GbE
LAN chip
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.1 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
DODATNO:iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management softwareSpletna stran proizvajalca:
https://www.gigabyte.com/Motherboard/B660M-GAMING-X-DDR4-rev-10#kf
