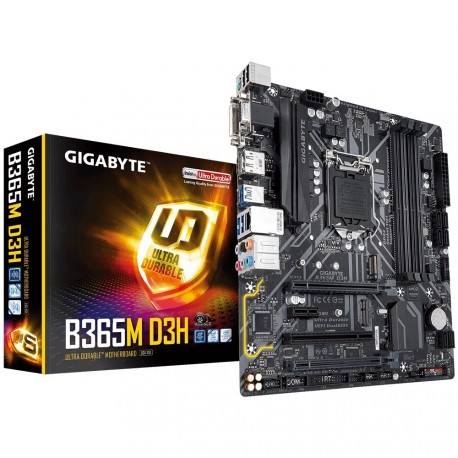

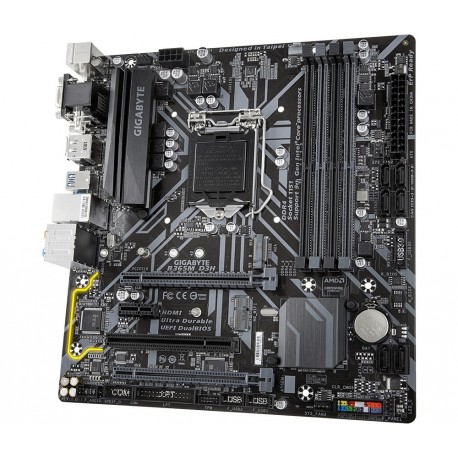

Matična plošča GIGABYTE B365M D3H, DDR4, LGA1151, mATX

PODNOŽJE: INTEL LGA 1151
ZA PROCESORJE: 9th/8th Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: mATX Form Factor 24.4 x 23 cm
VEZNI ČIP: Intel B365
POMNILNIK:4 x DIMM DDR4 (do 2666MHz) do skupno 64GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora
GRAFIKA: DA, preko CPU
RAID: 0, 1, 5, 10
RAZšIRITVENE REŽE: 1 x PCIe 3.0/2.0 x16
1 x PCIe x4
1 x PCIe x1
1 x PCI
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
MREŽNA KARTICA: Intel Gigabit LAN Controller(s)
ZVOČNA KARTICA:Realtek ALC892 8-Channel High Definition Audio CODEC

NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
3 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
DODATNO:iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeedSpletna stran proizvajalca:
https://www.gigabyte.com/Motherboard/B365M-D3H-rev-10#kf
