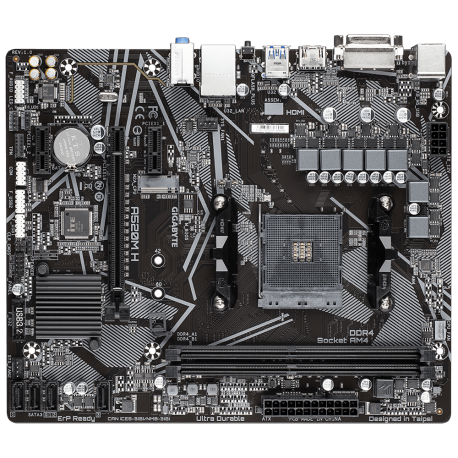

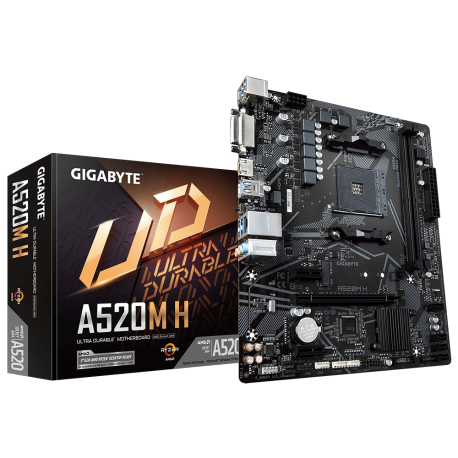

Matična plošča Gigabyte A520M H AM4

PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD Ryzen 4. in 3. generacije
ČIPSET: AMD A520
FORMAT: mATX
POMNILNIK: 2 x DDR4 DIMM max 4266 MHz (OC)/ 3200 MHz (Base), do 64 GB največje skupne kapacitete
ZVOČNIŠKA KARTICA: Realtek Audio CODEC 7.1 CH HD Audio
MREŽNA KARTICA: Realtek GbE LAN chip (1 Gbit/100 Mbit)
RAID: Da 0/1/10
NOTRANJI PRIKLJUČKI:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- 2 x PCI Express x1 slots, supporting PCIe 3.0
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x chassis intrusion header
- 1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 3 x audio jacks
DODATNO:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
POSEBNOSTI:
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/A520M-H-rev-1x#kf
