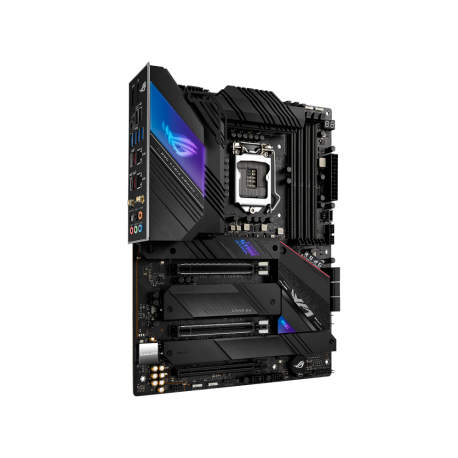

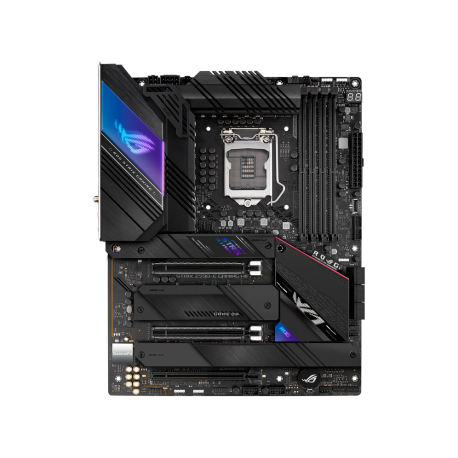

Matična plošča ASUS ROG STRIX Z590-E GAMING, 90MB1640-M0EAY0

PODNOŽJE: Intel LGA1200
ZA PROCESORJE: 10. in 11. generacije Intel Core, Pentium Gold in Celeron procesorji
ČIPSET: Intel Z590
FORMAT: ATX
POMNILNIK: 4 DIMM DDR4 5333 MHz (OC), do skupno 128 GB kapacitete
ZVOČNA KARTICA: Realtek ALC4080 7.1, Asus SupremeFX, AMP (Savitech SV3H712), DTS Sound Unbound
RAID: Da 0/1/5/10
BREZŽIČNE POVEZAVE: Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX210), Bluetooth 5.2
GRAFIKA: iGPU
NVIDIA 2-Way SLI (x8/x8)

NOTRANJI PRIKLJUČKI:
- 1x 24-Pin ATX
- 1x 8-Pin EPS12V
- 1x 4-Pin ATX12V
- 2x PCIe 4.0 x16 (1x x16, 1x x8, CPU)
- 1x PCIe 3.0 x16 (x4)
- 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242, CPU)
- 1x M.2/?M-Key (PCIe 3.0 x4, 22110/?2280/?2260/?2242, Z590)
- 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242, Z590)
- 1x USB-C 3.2 Key-A Header (20Gb/?s, Z590)
- 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0)
- 2x USB 2.0 header (480Mb/?s, 4x USB 2.0)
- 6x SATA 6Gb/s
- 1x TPM-Header
- 1x Thunderbolt-Header 13-Pin
- 1x Chassis Intrusion-Header
- 2x CPU fan 4-Pin
- 4x fan 4-Pin
- 1x AIO-pump 4-Pin
- 1x pump 4-Pin
- 1x Thermal-sensor
- 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
- 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)

ZUNANJI PRIKLJUČKI:
- 1x HDMI 2.0b
- 1x DisplayPort 1.4
- 1x USB-C 3.2 (20Gb/?s, Z590)
- 1x USB-C 3.1 (10Gb/?s, Z590)
- 2x USB-A 3.1 (10Gb/?s, Z590)
- 4x USB-A 3.0 (5Gb/?s)
- 2x USB-A 2.0 (480Mb/?s
- 2x 2.5GBase-T (Intel I225-V)
- 5x jack
- 1x SPDIF
