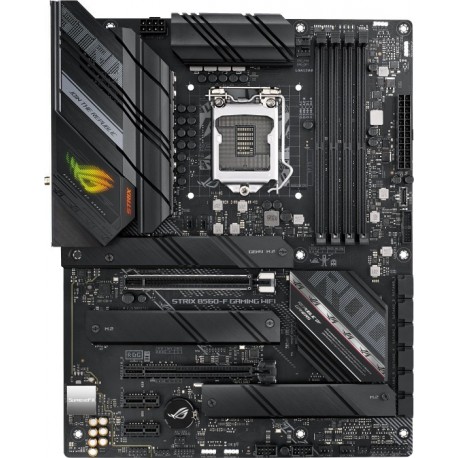

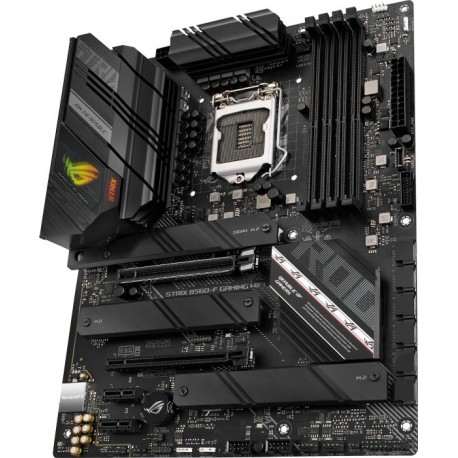

Matična plošča ASUS ROG STRIX B560-F GAMING, 90MB16J0-M0EAY0

PODNOŽJE: Intel LGA1200
NABOR ČIPOV: Intel B560
ZA PROCESORJE: 10. in 11. generacija Intel Core, Pentium Gold ali Celeron procesorje
POMNILNIK: 4 DIMM DDR4 5000 MHz (OC), do 128 GB skupne kapacitete
ZVOČNA KARTICA: 7.1 (Realtek ALC1220/?ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
GRAFIKA: iGPU
BREZŽIČNE POVEZAVE: Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX200), Bluetooth 5.2
FORMAT: ATX

NOTRANJI PRIKLJUČKI:
- 1x 24-Pin ATX
- 1x 8-Pin EPS12V
- 2x CPU fan 4-Pin
- 3x fan 4-Pin
- 1x AIO-pump 4-Pin
- 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
- 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
- 1x PCIe 4.0 x16 (CPU)
- 1x PCIe 3.0 x16 (x4, B560)
- 2x PCIe 3.0 x1 (B560)
- 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242, CPU)
- 1x M.2/?M-Key (PCIe 3.0 x4, 22110/?2280/?2260/?2242, B560)
- 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242, B560)
- 1x USB-C 3.0 Key-A Header (5Gb/?s, B560)
- 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0)
- 2x USB 2.0 header (480Mb/?s, 4x USB 2.0)
- 6x SATA 6Gb/s (B560)
- 1x TPM-Header
- 1x Thunderbolt-Header 13-Pin
- 1x S/?PDIF-Header
- 1x COM Debug-Header

ZUNANJI PRIKLJUČKI:
- 1x HDMI 2.0b (iGPU)
- 1x DisplayPort 1.4 (iGPU)
- 1x USB-C 3.2 (20Gb/?s, B560)
- 2x USB-A 3.1 (10Gb/?s, B560)
- 2x USB-A 3.0 (5Gb/?s)
- 1x USB-C 2.0 (480Mb/?s)
- 3x USB-A 2.0 (480Mb/?s)
- 1x 2.5GBase-T (Intel I225-V)
- 5x jack
