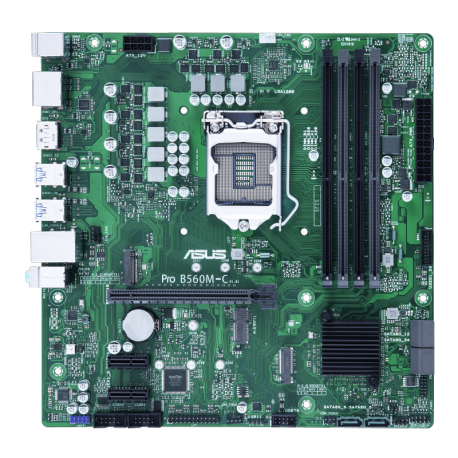

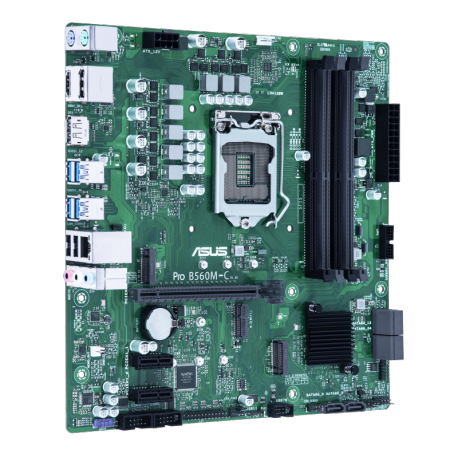

Matična plošča ASUS PRO B560M-C/CSM, LGA1200, 90MB1720-M0EAYC

ZA PROCESOR: Intel Core 11. in 10. generacija, Pentium Gold in Celeron procesorji
ČIPSET: Intel B560
POMNILNIK: 4 DIMM DDR4 2933(4600 OC) MHz, do max 128 GB skupne kapacitete
FORMAT: micro ATX
MREŽNA POVEZAVA: 1 x Intel® I219-V 1Gb Ethernet
ZVOČNA KARTICA: ALC887/897 7.1
ZUNANJI PRIKLJUČKI:
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 2 x DisplayPort
- 1 x HDMITM port
- 1 x M.2 slot (Key E)
- 1 x Intel® I219V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2 mouse (green) port
NOTRANJI PRIKLJUČKI:
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- 1 x USB 2.0 header supports additional 1 USB 2.0 port
- 1 x Clear CMOS header
- 1 x Chassis Intrude header
- 2 x COM Port headers
- 1 x Front Panel Audio header (AAFP)
- 1 x COM debug header
- 1 x LPT header
- 1 x Mono-out header(with Amp IC)
- 1 x SMBUS header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
