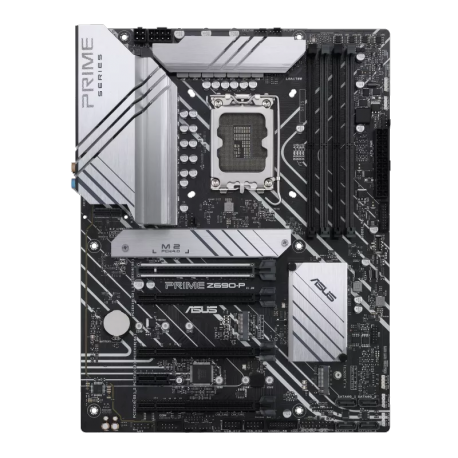

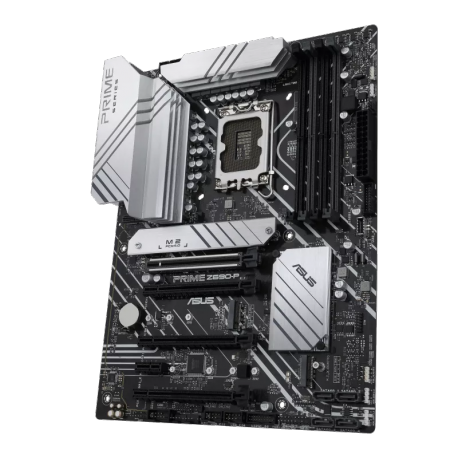

Matična plošča ASUS PRIME Z690-P (Intel, LGA1700, DDR5, ATX)

Intel® Socket LGA1700 za 13th Gen Intel® Core™ Procesorje & 12th Gen Intel® Core™, Pentium® Gold in Celeron®
Podpira Intel® Turbo Boost Technology 2.0 in Intel® Turbo Boost Max Technology 3.0

Čipset Intel® Z690
Pomnilnik: 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Grafika: 1 x DisplayPort, 1 x HDMI®

Razširitvena mesta:
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

Shranjevanje:
Podpira 3 x M.2 in 4 x SATA 6Gb/s priključke
Intel® 13th & 12th Gen procesorji
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s port

Internet:
1 x Realtek 2.5Gb Ethernet

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Priključki na zadnji strani matične plošče:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Priključki na matični plošči:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header

Podprta programska oprema:
SUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

V paketu:
Kabli 2 x SATA 6Gb/s
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Namestitveni medij
1 x Support DVD
Dokumentacija
1 x uporabniška navodila
