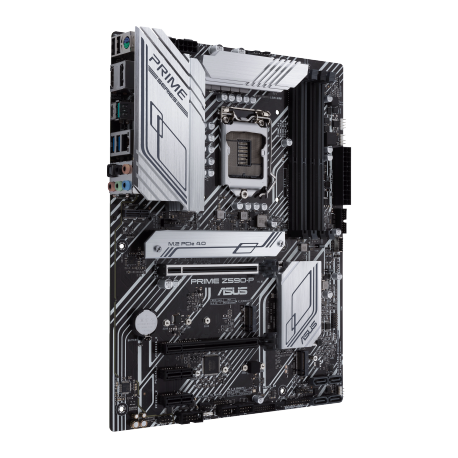

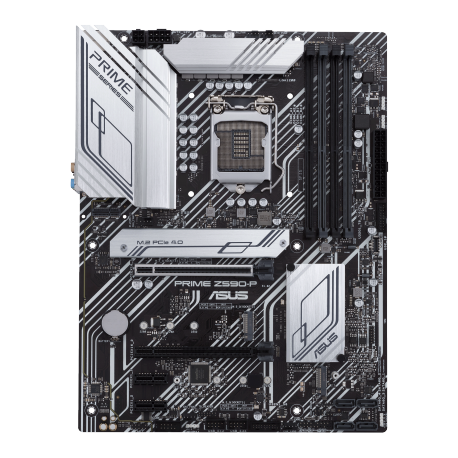

Matična plošča ASUS PRIME Z590-P, 90MB16I0-M0EAY0

Za procesor: 11. in 10. gen. Intel Core, Pentium Gold in Celeron
Podnožje: Intel LGA1200
Čipset: Intel Z590
Format: ATX (30,5 cm x 23.4 cm)
Pomnilnik: 4x DIMM DDR4 (5133 MHz (OC), 3200 MHz (Base)), do max 128 GB skupne kapacitete
Mrežna kartica: Realtek 2.5Gb Ethernet
Zvočna kartica: Realtek ALC897 7.1 CODEC
Notranji priključki:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-5pin System Panel header
- 1 x Thunderbolt™ header
Zunanji priključki:
- 1 x USB Type-C
- 1 x USB 3.1
- 2 x USB 3.0
- 2 x USB 2.0
- 1 x DisplayPort
- 1 x HDMI
- 1x V-M.2 slot (Key E)
- 1 x Ethernet
- 5 x Avdio
- 1 x S/PDIF
- 1 x PS/2
Dodatno:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
