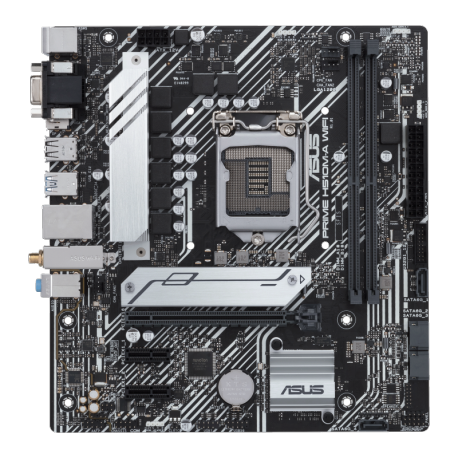

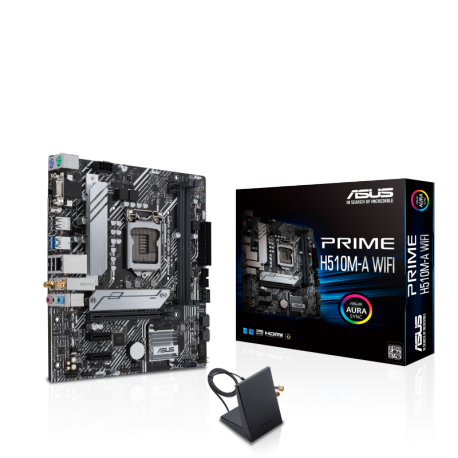

Matična plošča ASUS PRIME H510M-A WiFi, 90MB17D0-M0EAY0

ZA PROCESORJE: Intel Core 10. in 11. generacije, Pentium Gold in Celeron procesorji
PODNOŽJE: Intel LGA1200
ČIPSET: Intel H510
FORMAT: micro ATX
POMNILNIK: 2 DIMM DDR4 2933(3200 OC) MHz, do max 64 GB skupne kapacitete
MREŽNA POVEZAVA: 1 x Intel® I219-V 1Gb Ethernet
BREZŽIČNA POVEZAVA:
- Intel® Wi-Fi 5 9462NGW
- Wi-Fi 5 (802.11 a/b/g/n/ac)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.1
ZVOČNA KARTICA: Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
ZUNANJI PRIKLJUČKI:
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x ASUS Wi-Fi Module
- 1 x Intel® I219-V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
NOTRANJI PRIKLJUČKI:
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
